Many people recognize how important it is to optimize the efficiency of your solar system in order to maximize energy production and cost savings. The charge controller is a key component that can significantly impact your system's performance. In this article, we'll explore whether an MPPT (Maximum Power Point Tracking) charge controller can increase your solar system's efficiency.
Understanding MPPT Charge Controllers
MPPT charge controllers are advanced devices that optimize the power output of your solar panels by tracking the maximum power point (MPP) of the solar array. The MPP is the point at which the solar panels generate the most power feasible under given environmental conditions, such as temperature and irradiance.
By continuously adjusting the load on the solar array to maintain operation at the MPP, MPPT charge controllers can extract more power from your solar panels compared to traditional charge controllers, such as PWM (Pulse Width Modulation) controllers.
How MPPT Charge Controllers Work
MPPT charge controllers use sophisticated algorithms to track the MPP of the solar array. They do this by constantly monitoring the voltage and current of the solar panels and adjusting the load accordingly. This process is known as maximum power point tracking.
The MPPT charge controller translates the greater solar panel voltage to the lower battery voltage, allowing the battery to be charged with less current. This higher voltage conversion ratio results in lower current in the solar array circuit, which in turn reduces resistive power losses.
Advantages of MPPT Charge Controllers
Increased Energy Harvest: By operating the solar array at its MPP, MPPT charge controllers can increase the energy harvest by up to 30% compared to PWM controllers, depending on the system configuration and environmental conditions.
Improved Battery Charging: MPPT charge controllers can charge batteries more effectively, particularly in cold weather or when the battery is heavily drained.
Compatibility with Various Solar Panel Configurations: MPPT charge controllers can handle a wide range of solar panel voltages, allowing for more flexibility in system design and the use of longer wire runs.
Reduced Wiring Costs: MPPT charge controllers provide a greater voltage conversion ratio, which can lower the size and cost of wire in solar array circuits.
Factors to Consider When Choosing an MPPT Charge Controller
System Voltage: Ensure that the MPPT charge controller is compatible with your solar system's voltage, typically 12V, 24V, or 48V.
Maximum Input Power: Select an MPPT charge controller with a maximum input power rating that surpasses the combined output power of your solar panels.
Efficiency: Look for an MPPT charge controller with a high-efficiency rating, typically above 95%.
Tracking Speed: The tracking speed of the MPPT algorithm can impact the controller's capacity to respond to quickly changing environmental conditions.
Durability: Consider an MPPT charge controller with features like overcurrent protection, overtemperature protection, and reverse polarity protection to ensure long-term reliability.
Conclusion

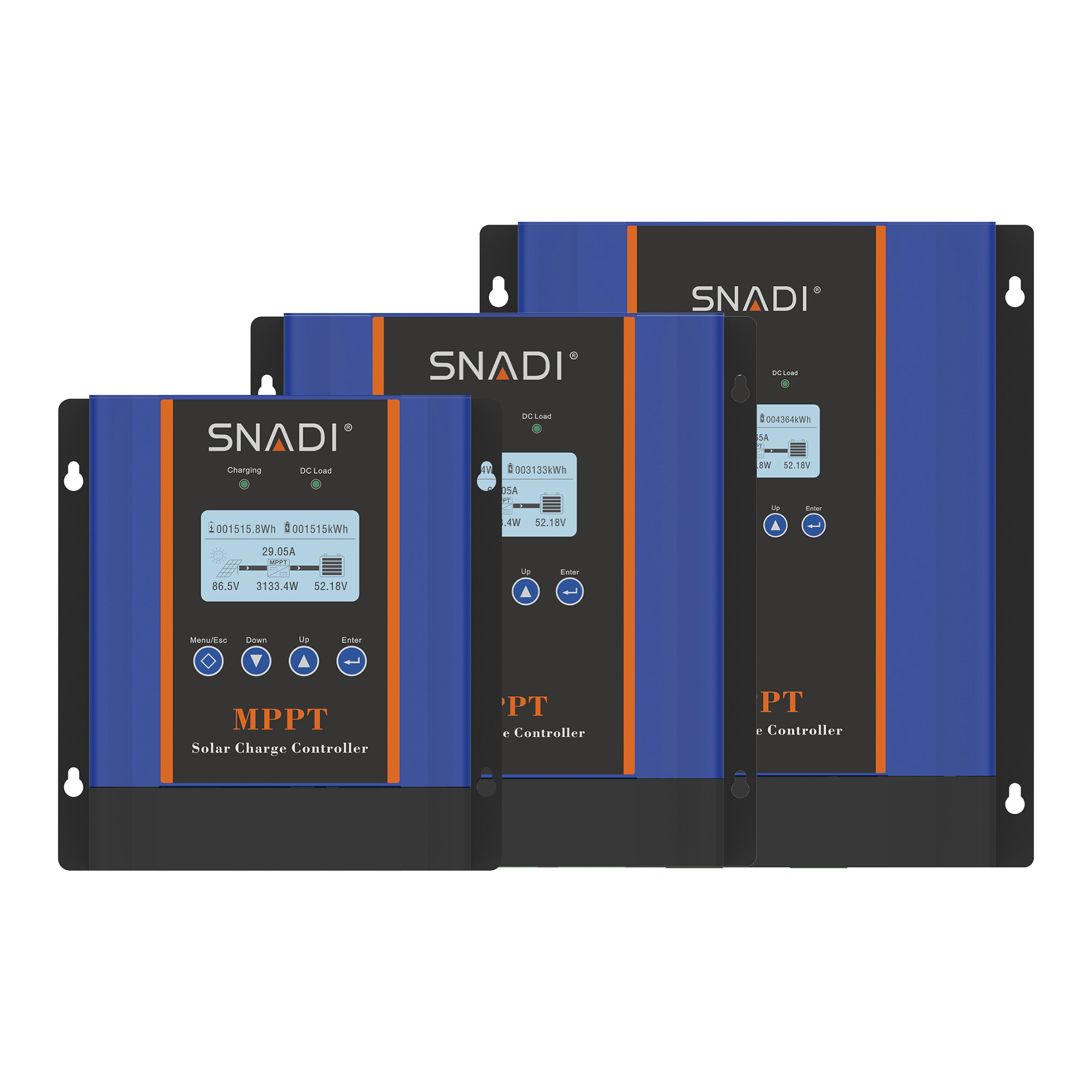

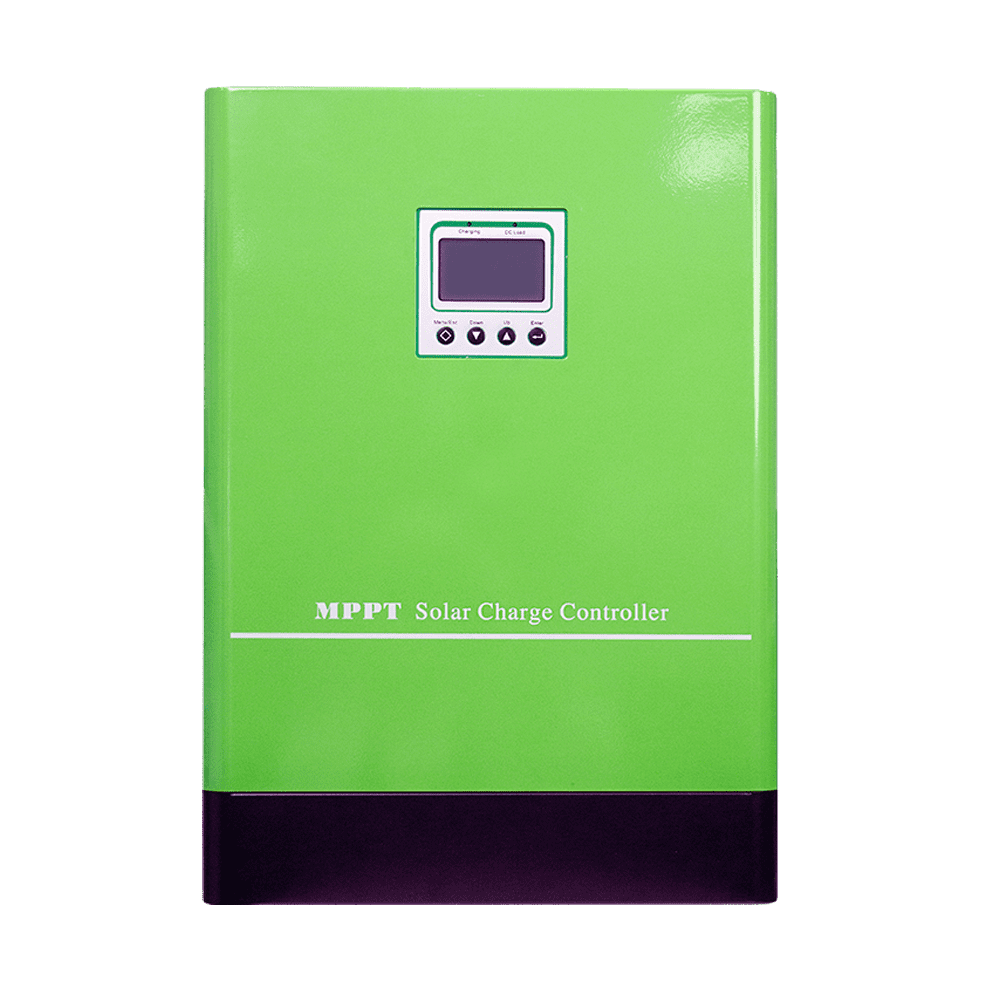

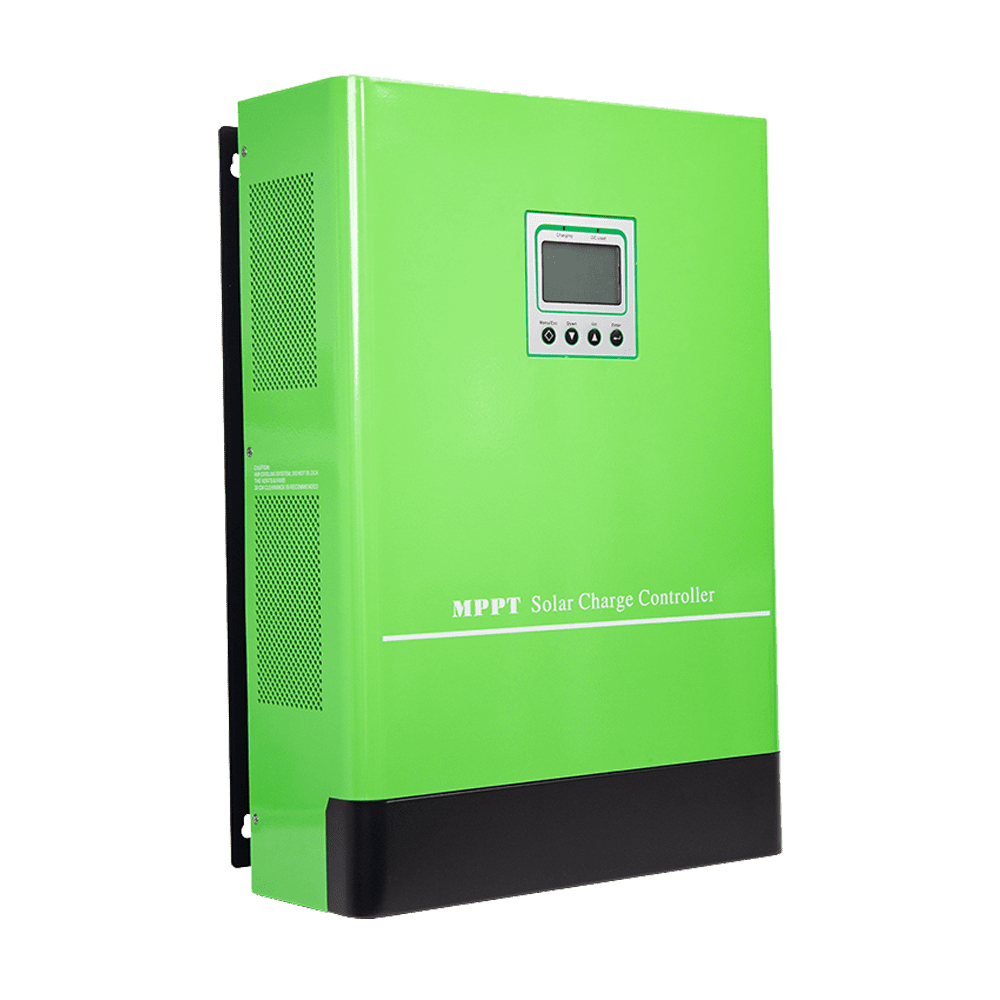

In conclusion, an MPPT charge controller can significantly increase the efficiency of your solar system by optimizing the power output of your solar panels. If you are looking for a high-quality MPPT charge controller, look no further than SNADI! Please feel free to visit our site for more product details today!
