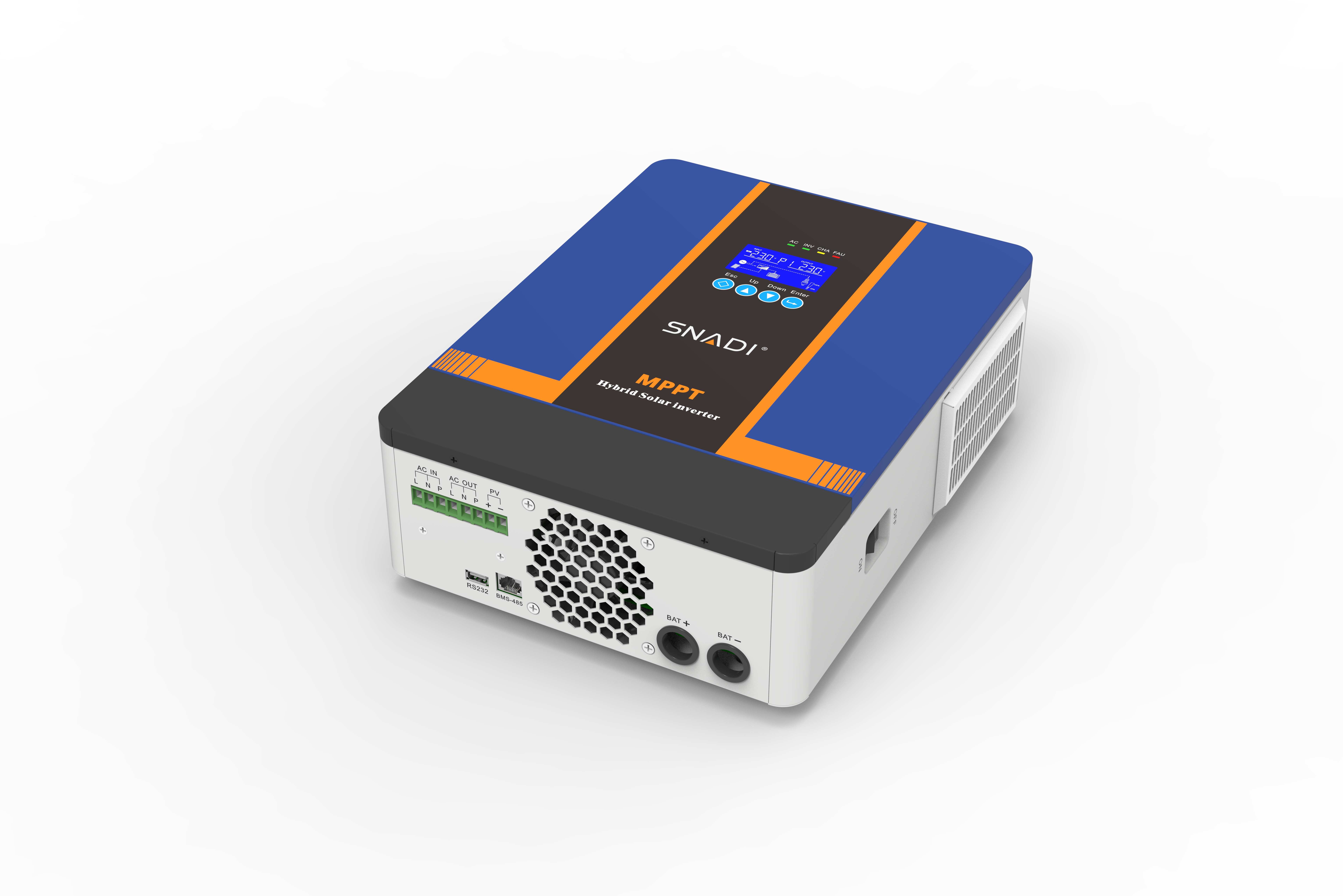

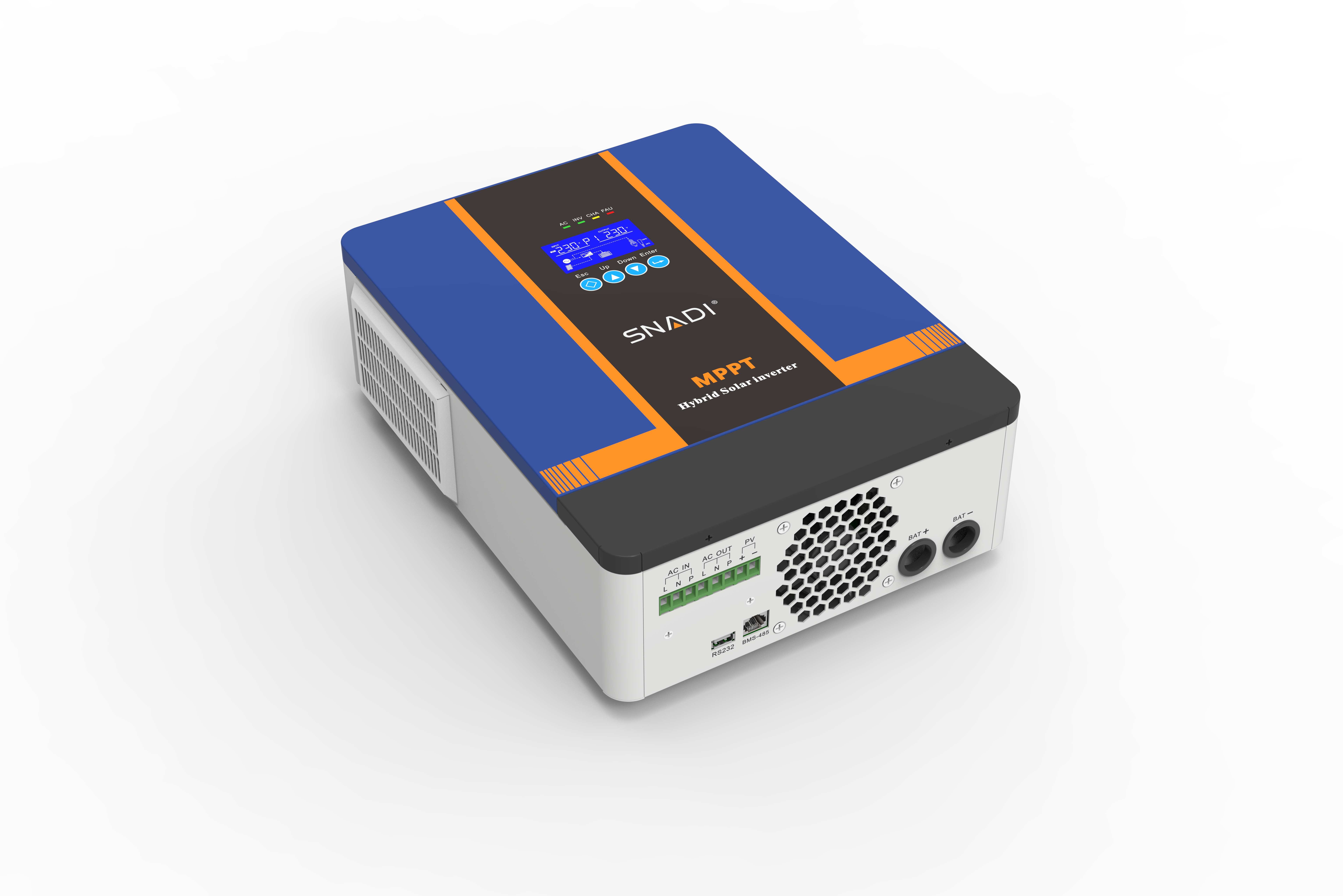

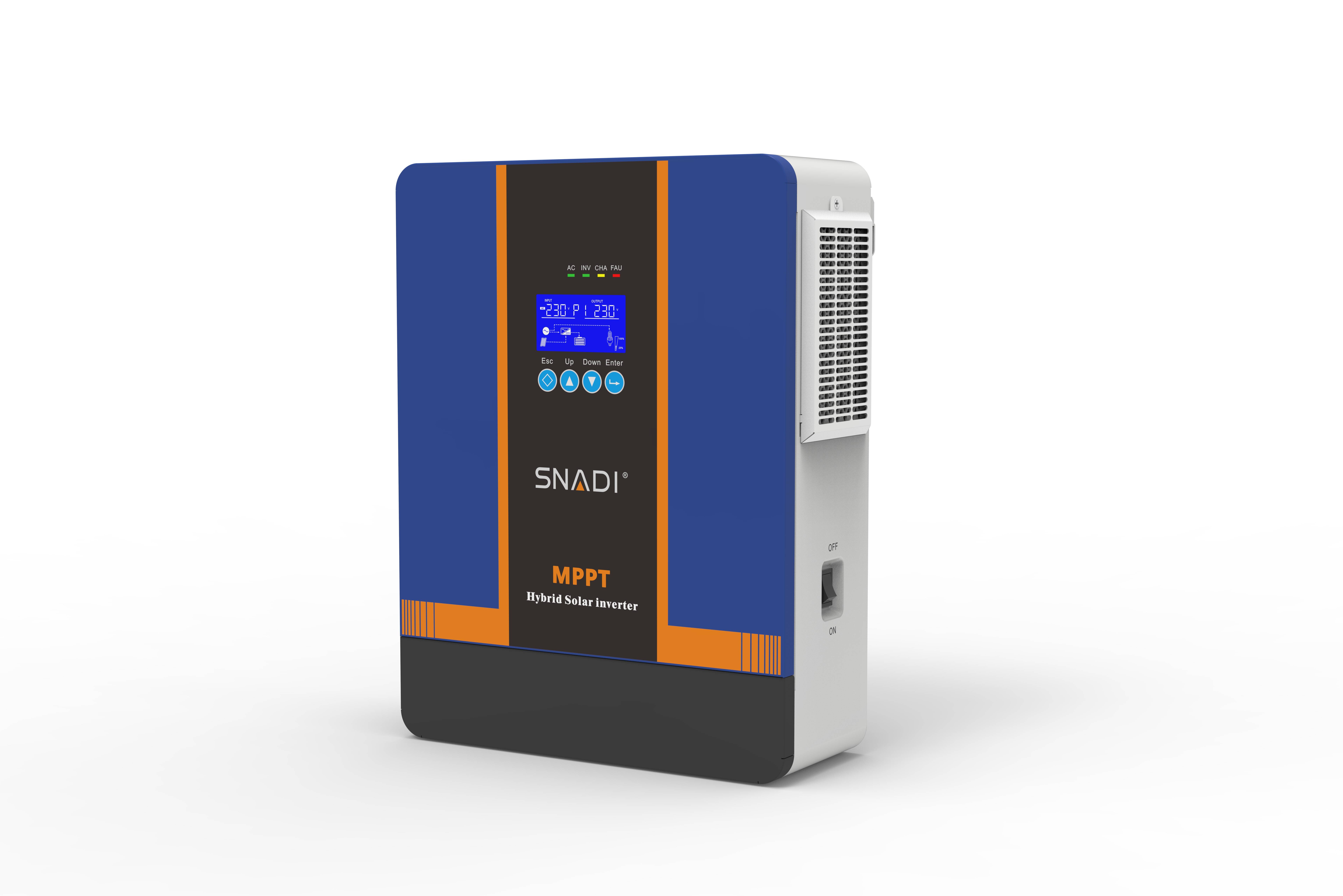

11KW NKH High Frequency MPPT Solar Inverter
SNADI's high frequency MPPT hybrid solar inverter is a powerful and efficient solution for residential and commercial solar energy systems. Hybrid solar inverter is the perfect choice for reliable and sustainable energy solutions.
●Built-in 1or 2 MPPT
●Lithum battery activation function by PV or Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave
●USB/RS485(/WiFi/GPRS)/Dry node control
●Small size, light weight, low freight, suitable for Air Frieght
●Capable to work without battery
●Wifi remote monitoring potional
●Support multiple output priority: UTL, SOL, SBU, SUB
●EQ function to optimize battery performance and extend lifecycle
Customized production that meets your needs
Model：11KW
SNADI's high frequency MPPT hybrid solar inverter is a powerful and efficient solution for residential and commercial solar energy systems. Hybrid solar inverter is the perfect choice for reliable and sustainable energy solutions.
MAIN FEATURES
◆Built-in 1or 2 MPPT
◆Lithum battery activation function by PV or Utility
◆Compatible work with LiFePO4 battery via RS485
◆Pure Sine Wave
◆USB/RS485(/WiFi/GPRS)/Dry node control
◆Small size, light weight, low freight, suitable for Air Frieght
◆Capable to work without battery
◆Wifi remote monitoring potional
◆Support multiple output priority: UTL, SOL, SBU, SUB
◆EQ function to optimize battery performance and extend lifecycle
| Product Specifications | |||||
| Model：NKH- | 11KW | ||||
| Rated Power | 11000W | ||||
| Input | Voltage | 230VAC/240VAC | |||
| Selectable Voltage Range | 170-280VAC(For Personal Computers) | ||||
| 90-280VAC(For Home Appliances) | |||||
| Frequency Range | 50Hz/60Hz(Auto sensing) | ||||
| Output | AC Voltage Regulation (Batt .Mode) | 220VAC/230VAC ±5% | |||
| Surge Power | 22KW | ||||
| Efficiency (Peak)PV to INV | 95% | ||||
| Efficiency (Peak)Battery to INV | 94% | ||||
| Transfer Time | 10 ms | ||||
| Overlord Capacity | 1min@102%-110% Load, 10s@110%-130% Load, 3s@130%-150% Load 2s@150% Load | ||||
| Battery &AC Charge | Battery Voltage | 48VDC | |||
| Floating Charge Voltage | 54VDC | ||||
| Overcharge Protection | 64VDC | ||||
| Maximum Charge Current | 120A | ||||
| Maximum PV Array Power | 5000W*2 | ||||
| PV Charge | MPPT Range Operating Voltage | 60~500VDC | |||
| Maximum PV Array Open Circuit Voltage | 500VDC | ||||
| Maximum Charge Current | 160A | ||||
| Maximum Efficiency | 99% | ||||
| AC+PV Charge | Maximum Charge Current | 160A | |||
| Physical | Dimension D”W”H(mm) | 540*403*122 | |||
| Net Weight(kg) | 15.5 | ||||
| Communication interface | USB/RS232/RS485 | ||||
| Opera Ting Environment | Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | 0°C-55°C | ||||
| Storage Temperature | -15°C-60°C | ||||
