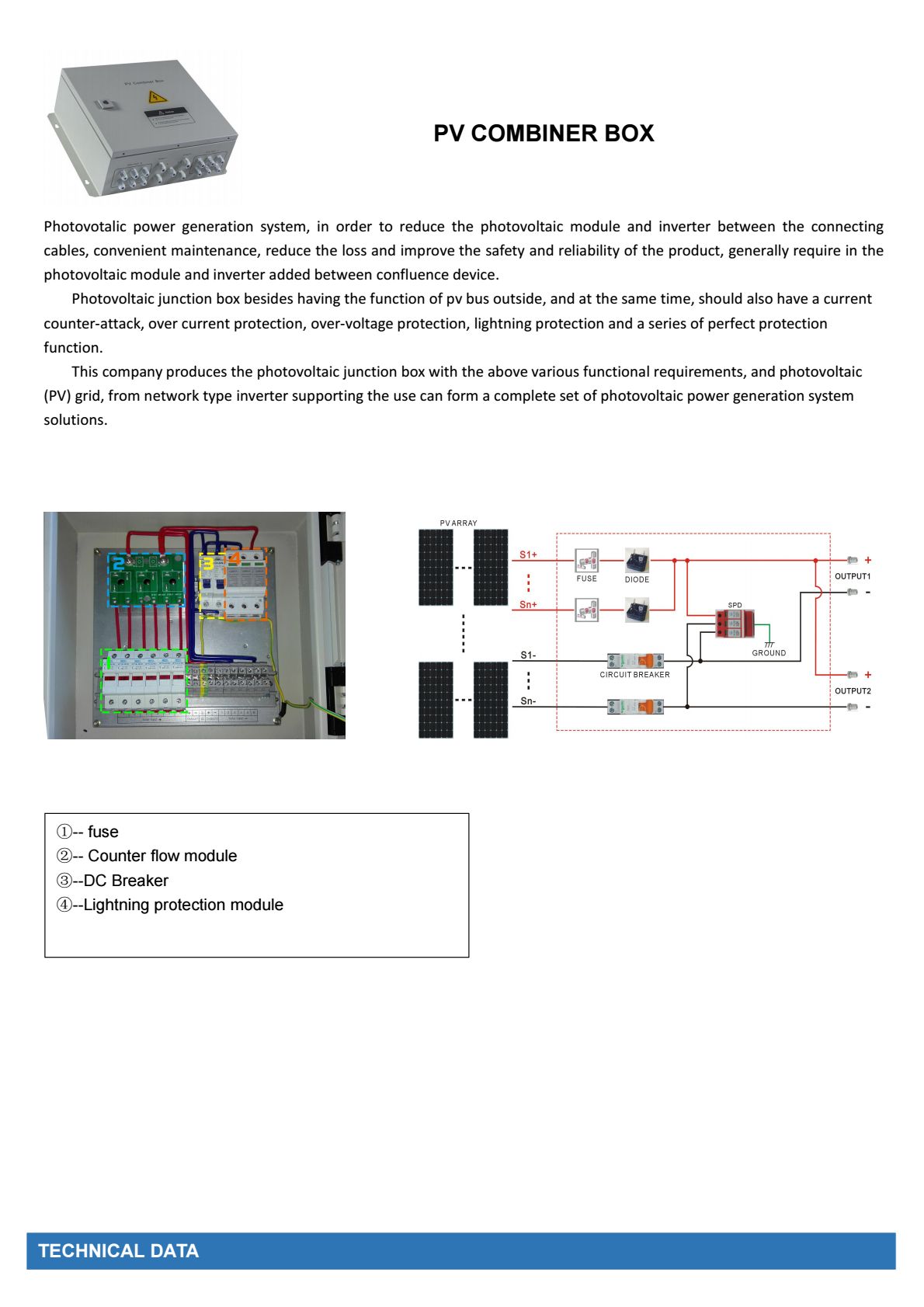

PV Combiner Box
SNADI 440VDC Photovoltaic Array Combiner Box
440VDC PV Array Combiner Box by SNADI, optimizes solar power system efficiency & safety. Perfect for large-scale solar energy projects.
●Multiple PV input arrays each of which has a maximum current of 16A
●A degree of protection of IP65 for meeting the need of outdoor installation
●A special high-voltage circuit breaker for output control of the PV module
Customized production that meets your needs
Model：H4T、H4T2、 H6T、H8T、H10T
440VDC PV Array Combiner Box by SNADI, optimizes solar power system efficiency & safety. Perfect for large-scale solar energy projects.
MAIN FEATURES
◆Two groups of independent PV array input andoutput for flexible application in different connection schemes;
◆Multiple PV input arrays each of which has a maximum current of 16A;
◆A high voltage fuse provided for the counterattack prevention of each PV input array;
◆A special high-voltage lightning protection device for the PV module;
◆A special high-voltage circuit breaker for output control of the PV module;
◆A degree of protection of IP65 for meeting the need of outdoor installation
| Photovoltaic Array Combiner Box (H4T、H4T2、H6T、H8T、H10T) |
||||||
| Product Specifications | ||||||
| Model | H4T | H4T2 | H6T | H8T | H10T | |
| Input Data | Number Of PV Input Arrays | 4 | 4 | 6 | 8 | 10 |
| Maximum Current Of Each PV Input Array | 16A | |||||
| Fuse For Each PV Input Array | 16A | |||||
| Wire Number Of Each PV Input Array | PG7、4mm2 | |||||
| Output Data | Number Of Output Channel | 1 | 2 | |||
| Maximum Output Current | 60A | 30A/each way, total 60A | 30A/each way, total 60A | 40A/each way, total 80A | 50A/each way, total 1 00A | |
| Wire Number Of Each Output Channel | PG16, each way 8mm2 | Pg16, each way 8mm2 | Pg16, each way 10mm2 | Pg16、each way 10mm2 | Pg16、each way 12mm2 | |
| Maximum Output Voltage | 440VDC | |||||
| DC Output Circuit Breaker | Yes | |||||
| Other Data | Protection | IP65 | ||||
| Temperature | -30°C 〜+60°C | |||||
| Reference Weight (net weight/gross weight) | 5.3/9.3 | 8.4/12.9 | 9.5/14.3 | 10.8/15.6 | ||
| Equipment Dimensions(DXWXH) | 340*300*140mm | 360*340*145mm | 400*420*145mm | |||
| Packing Dimensions(DXWXH) | 450*420*245mm | 470*450*255mm | 530*510*255mm | |||
| Cooling Method | Natural Cooling | |||||
| Surge Protection | Yes | |||||
| Ground Wire Number | >6mm2 | |||||
