Solar Inverter Series

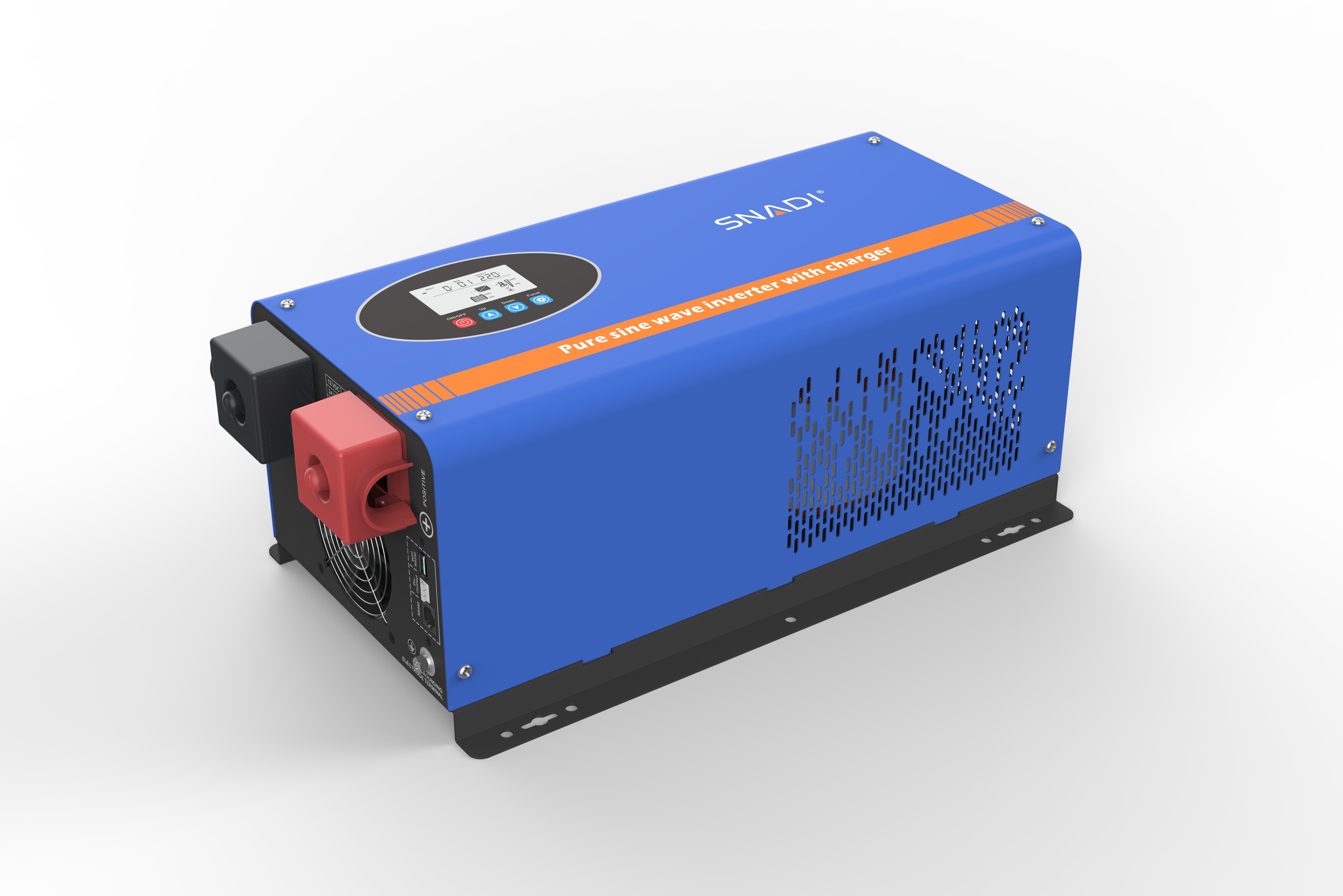

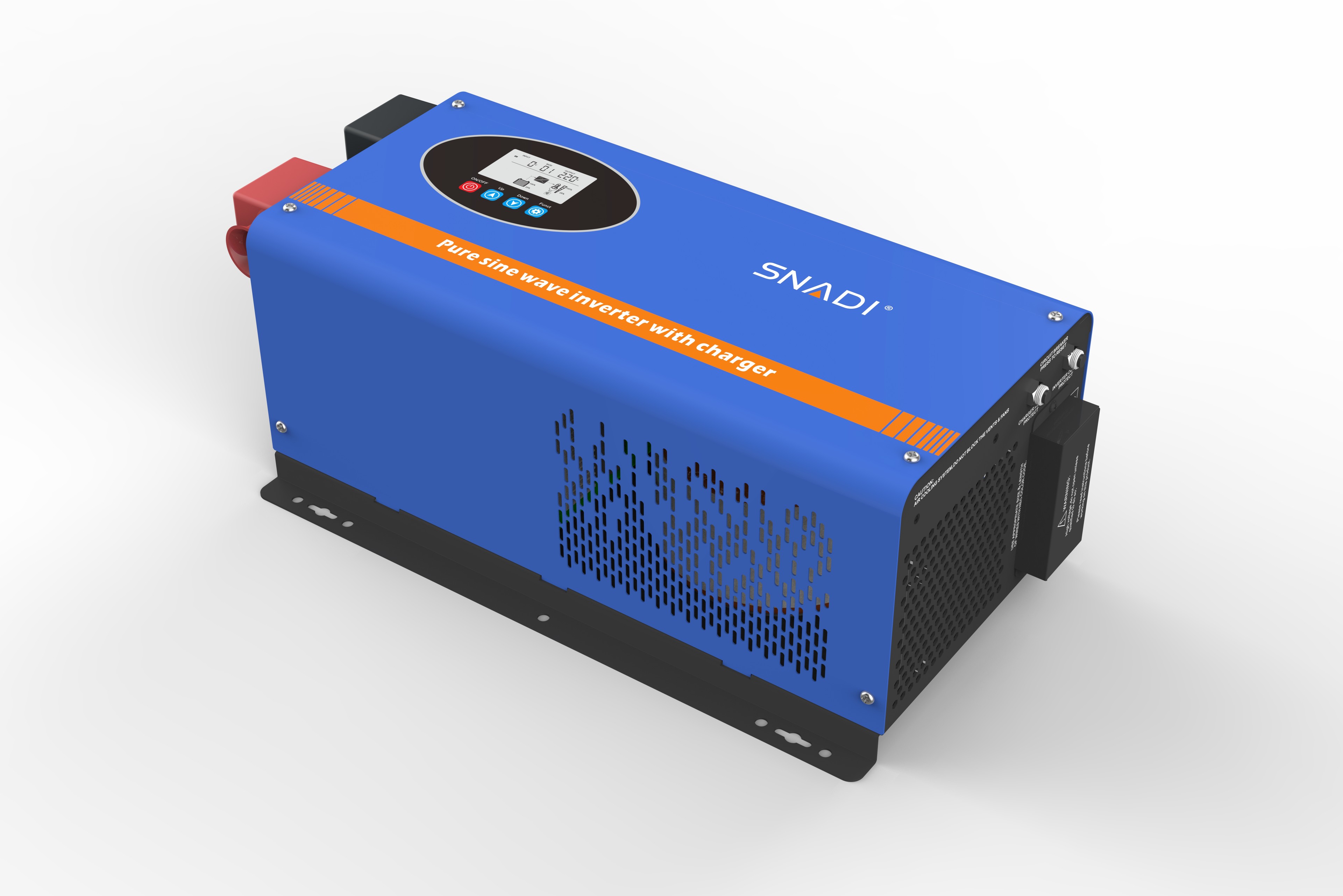

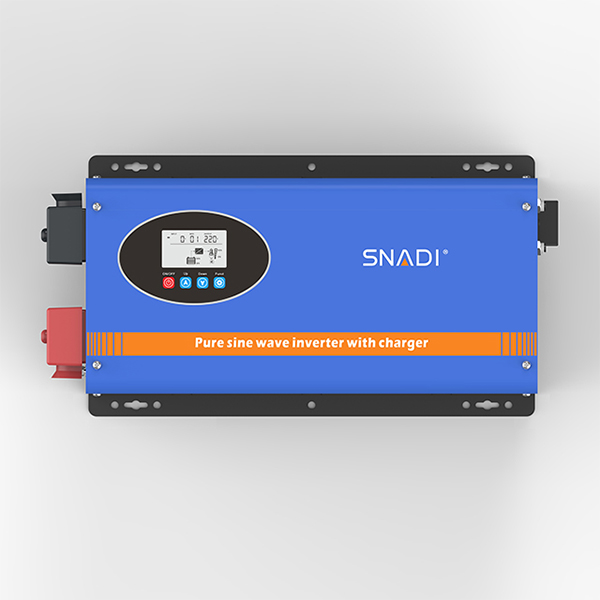

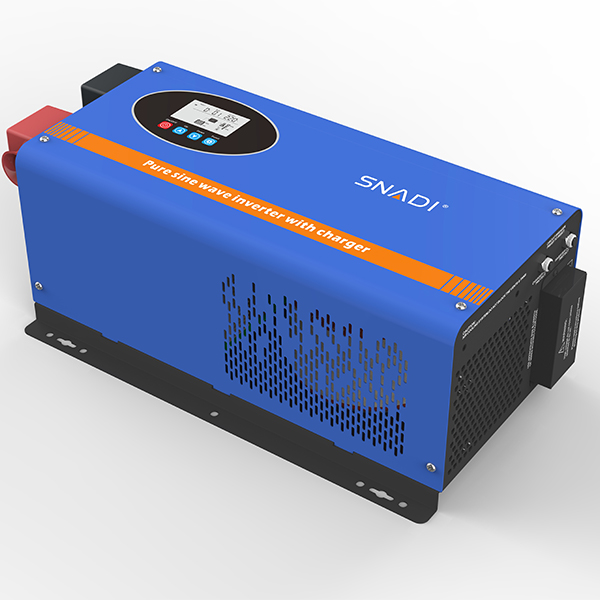

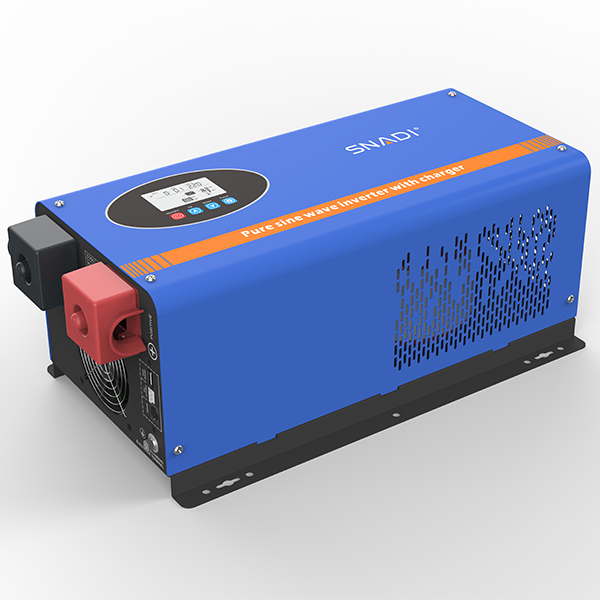

SNADI FT Pure Sine Wave Inverter With Charger
SNADI's Pure Sine Wave Inverter with Charger is a reliable and efficient solution for clean and stable power. With a built-in charger and easy-to-use interface, it's perfect for off-grid and backup power systems.
●Pure sine wave output for compatibility with loads of different types
●Visualization of operation status of the equipment through a digital LCD
●A wide range of input voltage, accurate output and automatic voltage stabilization
Customized production that meets your needs
Model：1KW、1.5KW、2KW、3KW、4KW、5KW、6KW、8KW、10KW
SNADI's Pure Sine Wave Inverter with Charger is a reliable and efficient solution for clean and stable power. With a built-in charger and easy-to-use interface, it's perfect for off-grid and backup power systems.
MAIN FEATURES
◆Pure sine wave output for compatibility with loads of different types
◆Visualization of operation status of the equipment through a digital LCD
◆A wide range of input voltage, accurate output and automatic voltage stabilization
◆Settable battery type and charge current for the charge management of batteries of different types of FT/FT-B
◆Settable mains supply preferred mode, energy-saving mode and battery preferred mode for easy meeting of the needs of different users
◆Overall protection functions (battery over voltage protection, battery under voltage protection, overload protection, short circuit protection and over temperature protection)
| FT Series Pure Sine Wave Inverter With Charger(1KW、1.5KWs 2KW、3KW、4KW、6KW、6KW、8KW、10KW) | ||||||||||
| Product Specifications | ||||||||||
| Model: FT | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | |
| Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000w | |
| Battery | Rated Voltage | 12VDC/24VDC/48VDC | 24VDC/48VDC | 48VDC/96VDC | ||||||
| Charge Current | 30A (default) -C0-C6 | |||||||||
| Battery Type | U0-U7 | |||||||||
| Input | Voltage Range | 85-138VAC/170-275VAC | ||||||||
| Frequency | 45-65Hz | |||||||||
| Product Size:L"W"H(mm) | 486*247*179 | 555*307*189 | 653*332*260 | |||||||
| Package Size: L"W"H(mm) | 550*310*230 | 640*370*240 | 715*365*310 | |||||||
| Output | Voltage Range | 110VAC/220VAC; ±5%( Inversion mode) | ||||||||
| Frequency | 50/60Hz±l%( Inversion mode) | |||||||||
| Output Wave | Pure Sine Wave | |||||||||
| Conversion Time | <10ms(Typical load) | |||||||||
| Efficiency | >85% (80% resistive load) | |||||||||
| Overload | 110-120%/30S; >160%/300ms; | |||||||||
| Protection Function | Battery overvoltage protection, battery undervoltage protection, overload,protection, short circuit protection, overtemperature protection, etc. | |||||||||
| Operation Of Ambient Temperature | 0-40°C | |||||||||
| Ambient Temperature For Storage | -15-+50°C | |||||||||
| Operation/Storage Ambient | 0-90% No Condensation | |||||||||
