Lithium Battery Series

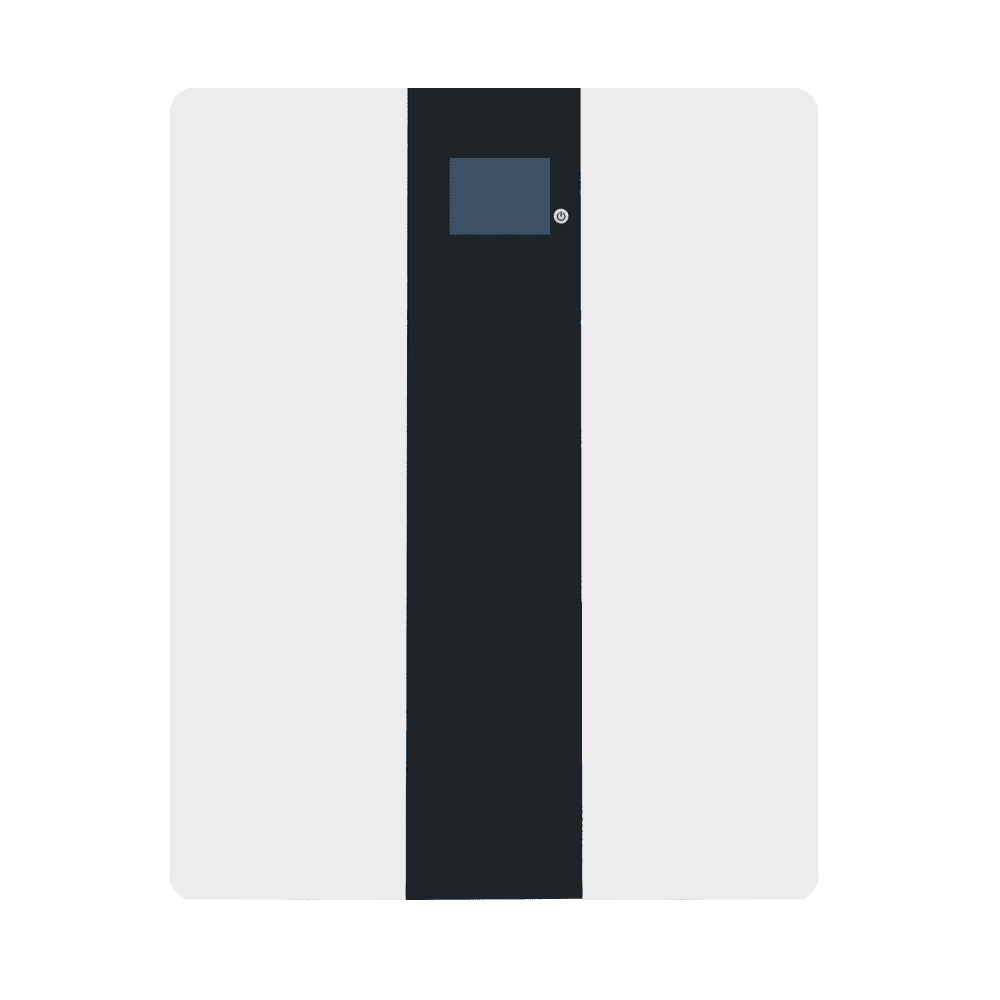

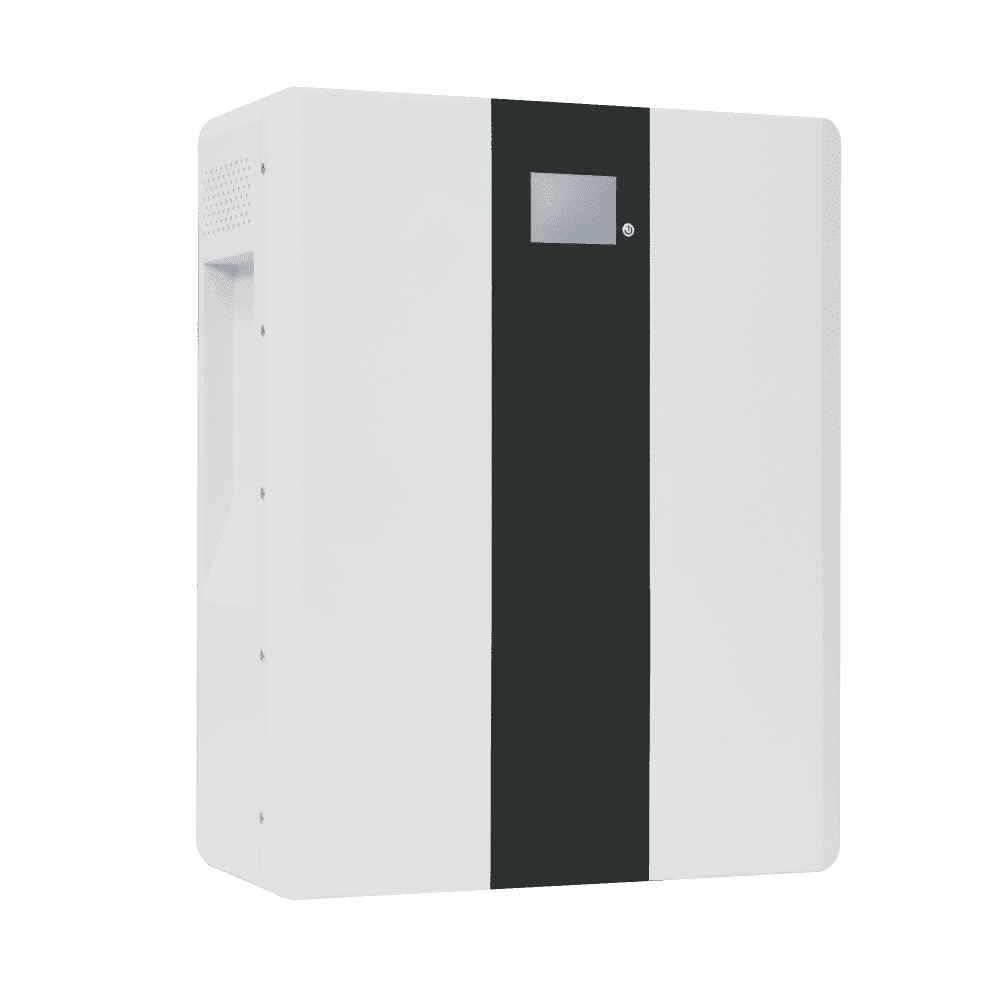

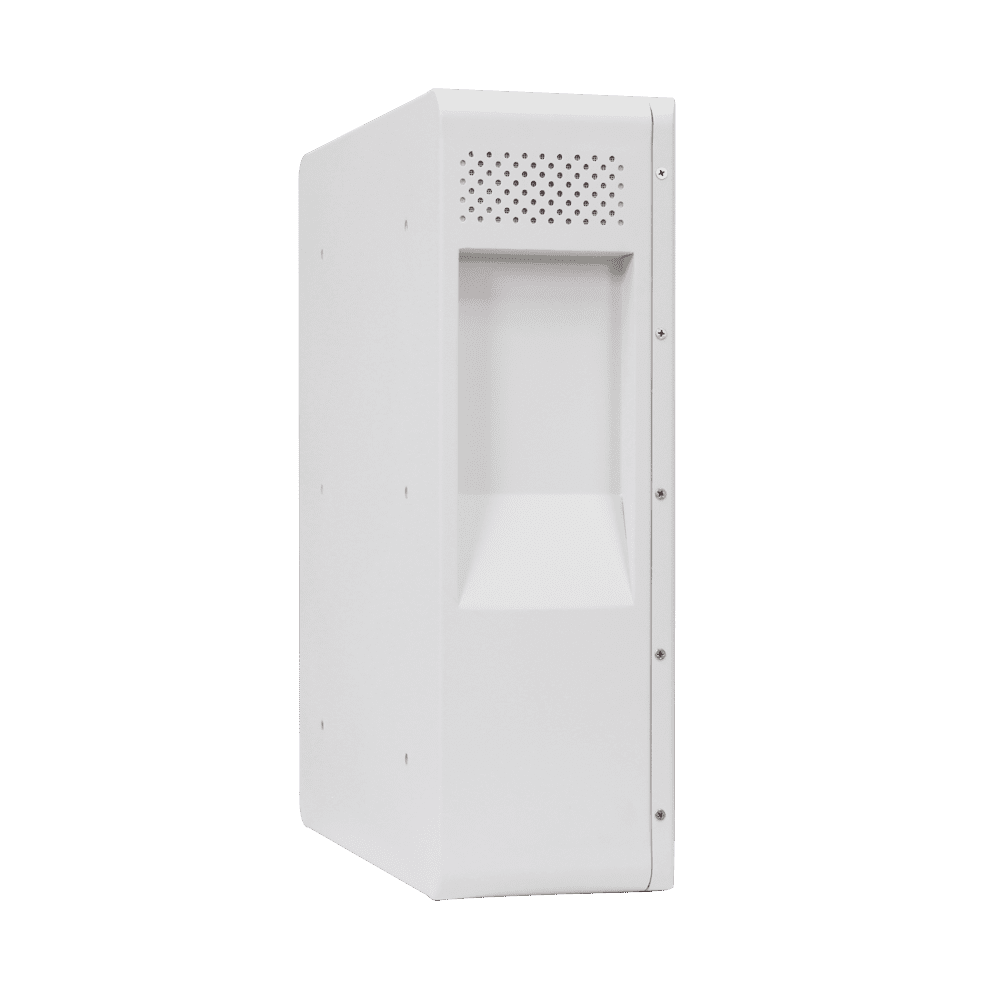

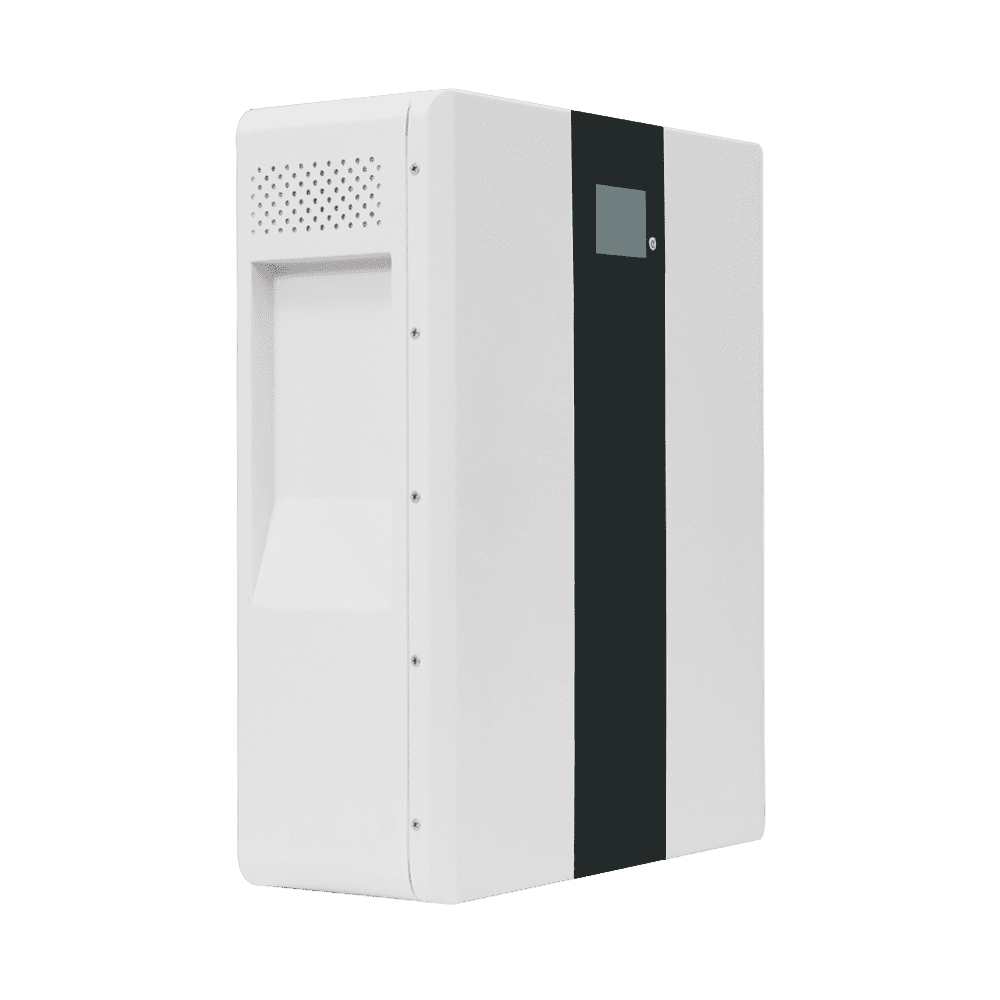

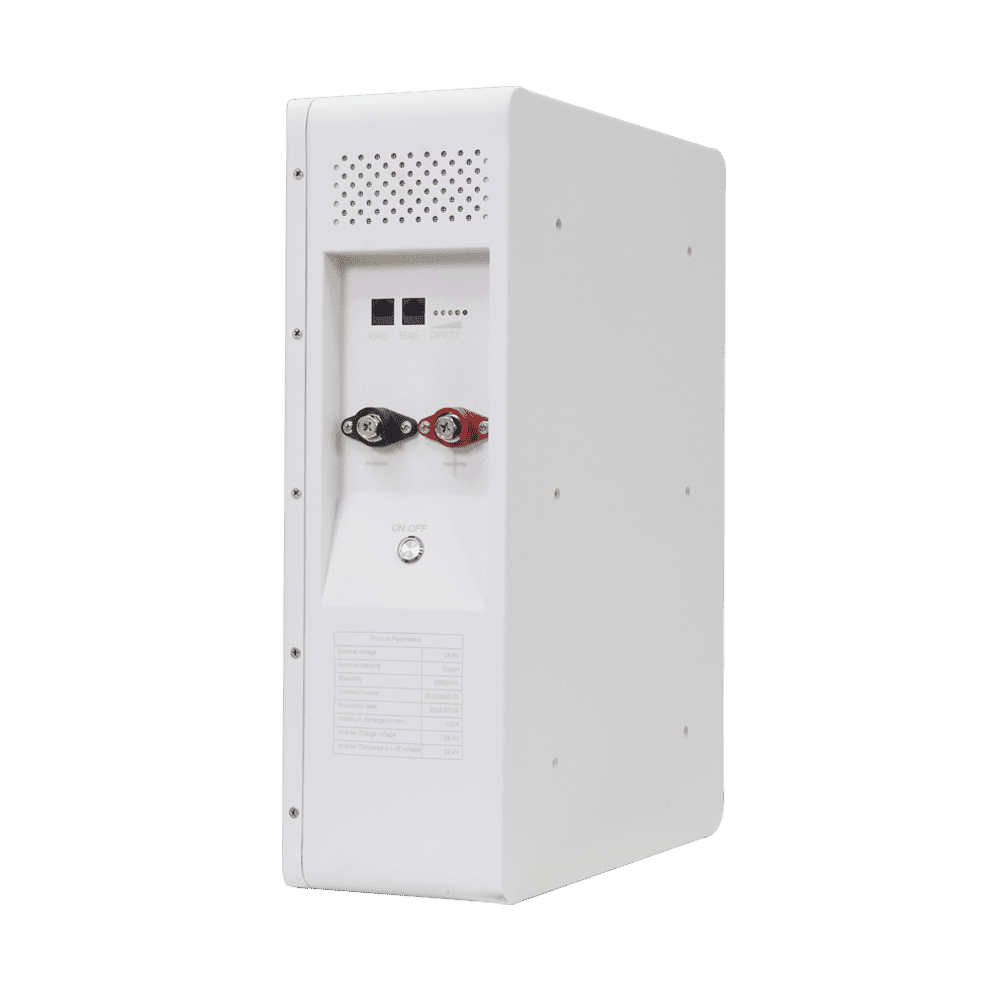

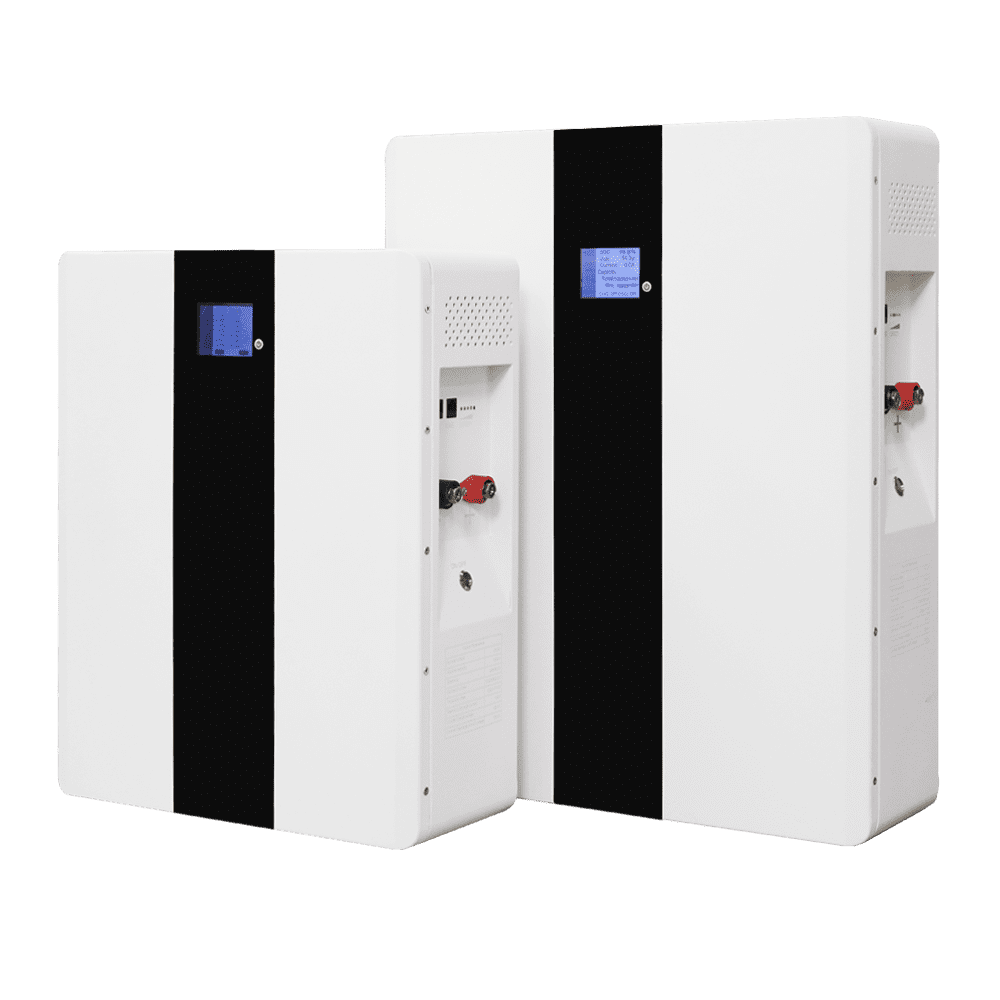

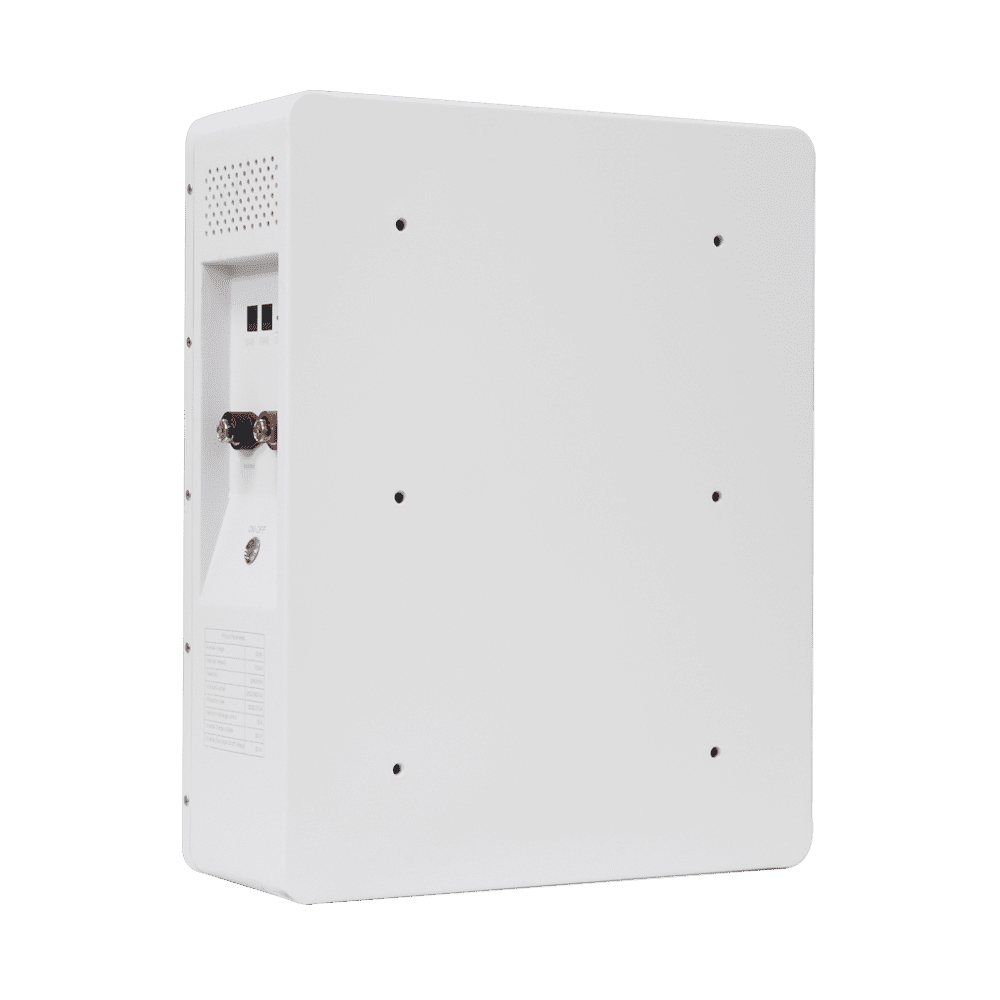

Lifepo4 Lithium Battery Bank Wall Mounted Solar Battery Lifepo4 Battery
SNADI are professional off grid solar products manufacturer,we supply Solar power system and support OEM/ODM service,LiFePO4 lithium battery bank offers reliable and long-lasting energy storage.
●Big discharge current, Suitable for solar system
●Smart BMS system to optimize the eormance
●RS485/CAN compatible with different brand of solar inverter
Customized production that meets your needs
Model：LPBF24100、LPBF24150、LPBF24200、LPBF48100、LPBF48150、LPBF48200
SNADI are professional off grid solar products manufacturer,we supply Solar power system and support OEM/ODM service,LiFePO4 lithium battery bank offers reliable and long-lasting energy storage.
| LiFePO4 Lithium Battery Bank | ||||||
| Product Specifications | ||||||
| Model | LPBF24100 | LPBF24150 | LPBF24200 | LPBF48100 | LPBF48150 | LPBF48200 |
| Rated Capacity | 2.56KWH | 3.84KWH | 5. 12KWH | 5.12KWH | 7.68KWH | 10.24KWH |
| Nominal Voltage | 25.6 | 25.6 | 25.6 | 51.2 | 51.2 | 51.2 |
| Voltage Range | 20-28.8 | 20-28.8 | 20-28.8 | 40-57.6 | 40-57.6 | 40-57.6 |
| Recommend Charge Cut-off Voltage | 28.8 | 28.8 | 28.8 | 57.6 | 57.6 | 57.6 |
| Recommend Discharge Cut-off Voltage | 20 | 20 | 20 | 40 | 40 | 40 |
| MAX. Charge & Discharge Current | 100A/150A/200A | |||||
| DOD | >95% | |||||
| Modules Connection | 1~6 in parallel | |||||
| Communication | CAN & RS485 | |||||
| Ingress Protection | IP21 | |||||
| Cycle Life | > 4500 @25°c | |||||
| Working Temperature Range | Discharge:-20°C to + 65°C，Charge:+0°C to +55°C | |||||
| Internal Resistance | ≤30m Ω | |||||
| Maximum Continuous Charging Current | 0-70A | |||||
| Maximum Continuous Discharge Current | 0-100A | |||||
| Power Instructions | Have | |||||
| Weakness Switch | Often Open Often Closed | |||||
| RS485 Communication Port | Two | |||||
| Display Screen | Have | |||||
| Storage Temperature | Save For Three Months From 0°C To 30°C | |||||
| Transport And Storage Form | Static Batteries Shall Betransported And Stored Under Semifilled Conditions (About 70%) | |||||
| Charging And Protection | 3.75V±50mV(monomer) | |||||
| Voltage Overcharge is slow,overvoltage | 3.55V±50mV(monomer) | |||||
| Discharge Protection Voltage | 2.2V±100mV(monomer) | |||||
| Overslow, Complex Voltage | 2.7V±100mV(monomer) | |||||
| Overcurrent Protection | l80±10A | |||||
| Short circuit Protection | (Release condition 1s off- load)/ MOS Tube Bears The Highest Short Circuit Current | |||||
| Balanced Function | Equilibrium Current is 45±5mA | |||||
